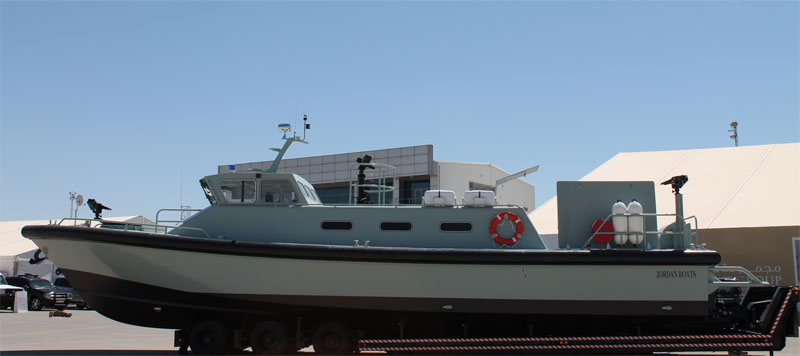

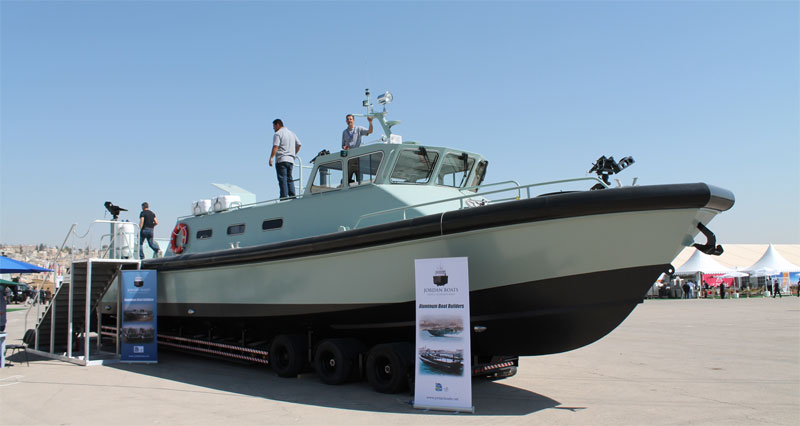

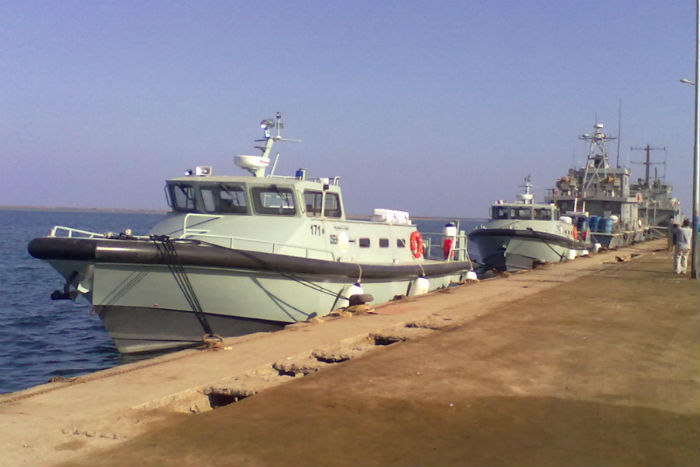

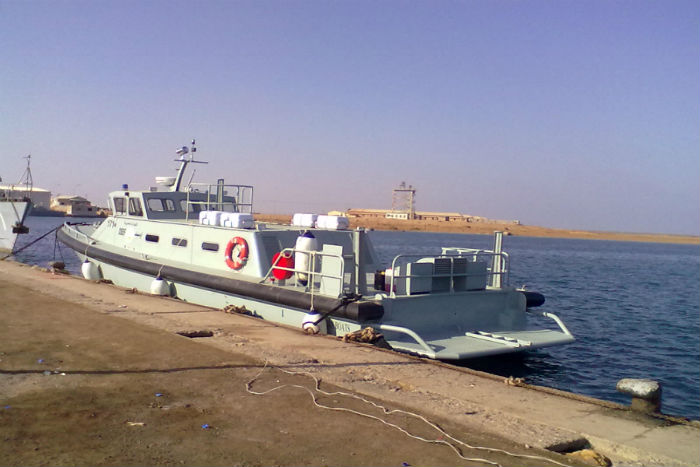

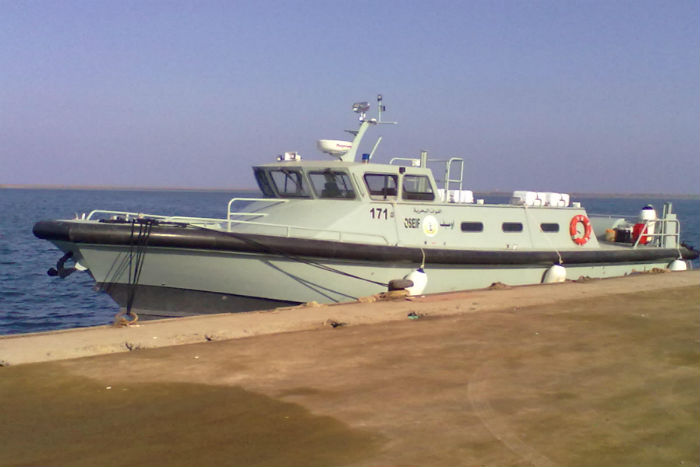

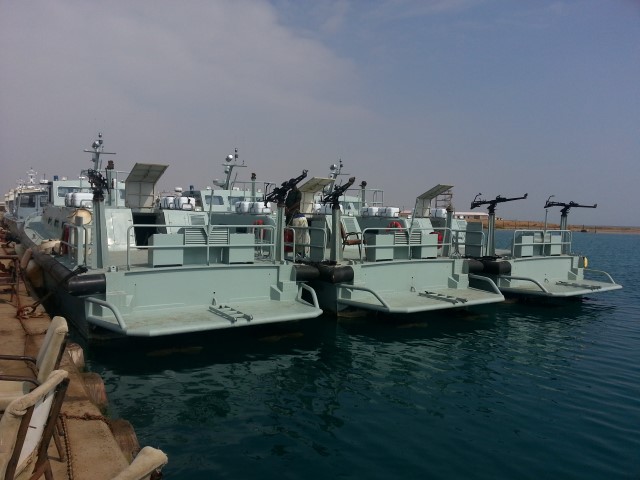

17m Fast Patrol Boat
|
Hull:
|
Deep Vee mono hull welded marine grade aluminium 5083 |
|---|---|
|
Length overall
|
17 m |
|
Length moulded
|
15.7 m |
|
Beam overall
|
4.5 m |
|
Beam moulded
|
4.1 m |
|
Draft
|
0.7 m |
|
Deadrise angle
|
18° |
|
Bottom plate
|
6mm |
|
Frames, Sides
|
5mm |
|
Cabin, main deck
|
4 mm |
|
Deck Configuration
|

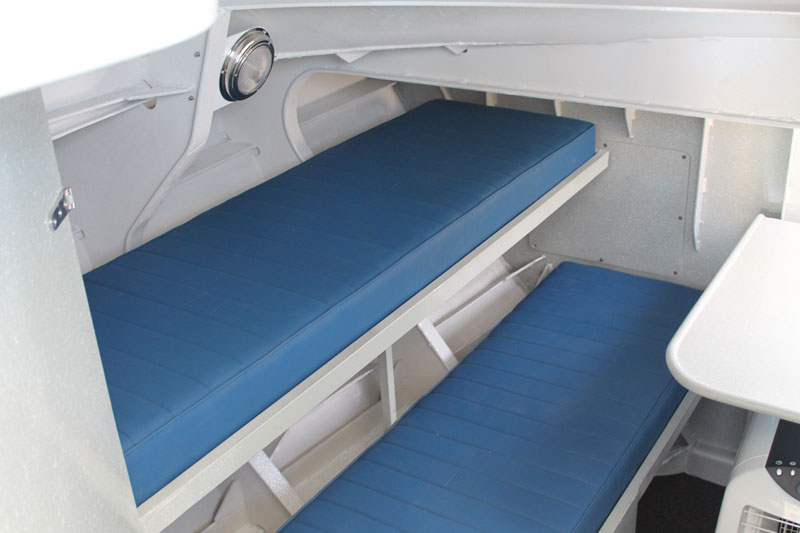

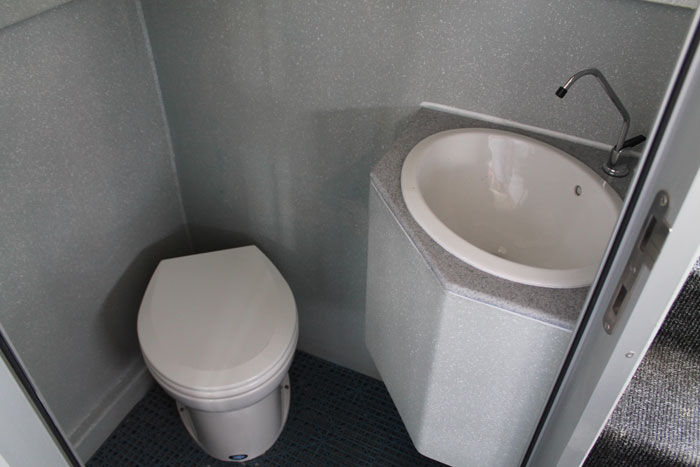

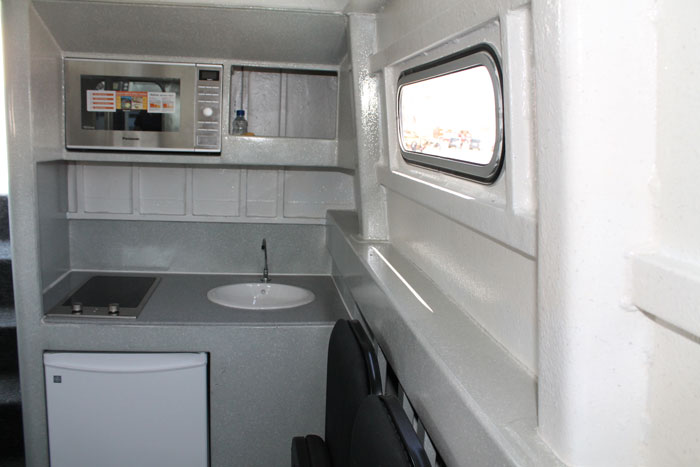

Air conditioned cabin, store, kiosk, toilet, and over deck helicopter landing spot |
|
Fender system
|
The boat is rounded by a high-tech special foam fender system (not-inflatable). It is closed cell polyurethane with outer layer of NEOPRENE. It is exceptionally resistant to impact abrasion, extreme climate changes, and not affected by petrol, diesel, oil, acids or any type of solvents. |
|
Main engines |

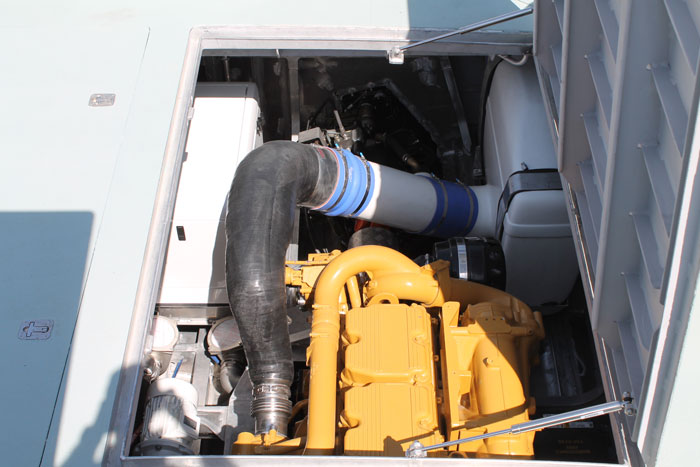

Caterpillar C18 Acert diesel (1150HP) |
|
Gearbox
|
Integrated with Jetdrive |
|

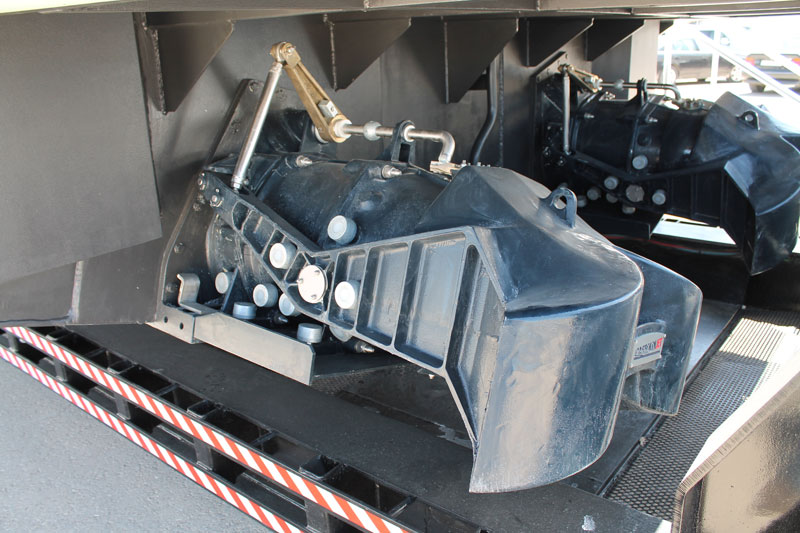

Drives
|
2x Castoldi TD400HC |
|
Genset
|
Kohler 8 kVA |
|
Fuel tank
|
2400 Litres |
|
Fresh Water tank
|
150 Litres |
|

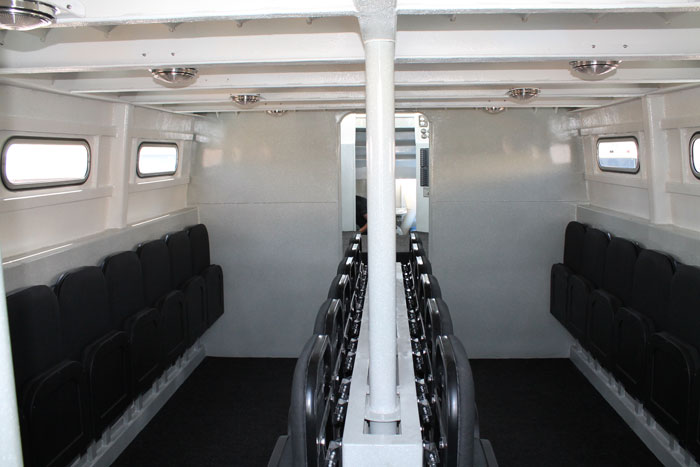

Pax
|
4 + 28 seated |
|
Weight (fully loaded)
|
18 ton |
